SN® Non-Shuttered Adapters
The SN® Non-Shuttered Adapter is available in 1-channel (2 fibers) and 4-channel (8 fibers) versions, offering high flexibility and density for modern optical systems. The 1-channel design isolates individual optical paths, while the 4-channel version maximizes port capacity in compact patch panels. Matching the QSFP-DD footprint, it enables 1:1 switch-to-panel replication.
- QSFP-DD footprint compatible
- Works with SN® Uniboot and Gang-clip systems
- Complies with Telcordia, ANSI, TIA, and IEC standards
- Supports SN® standard and junior connectors

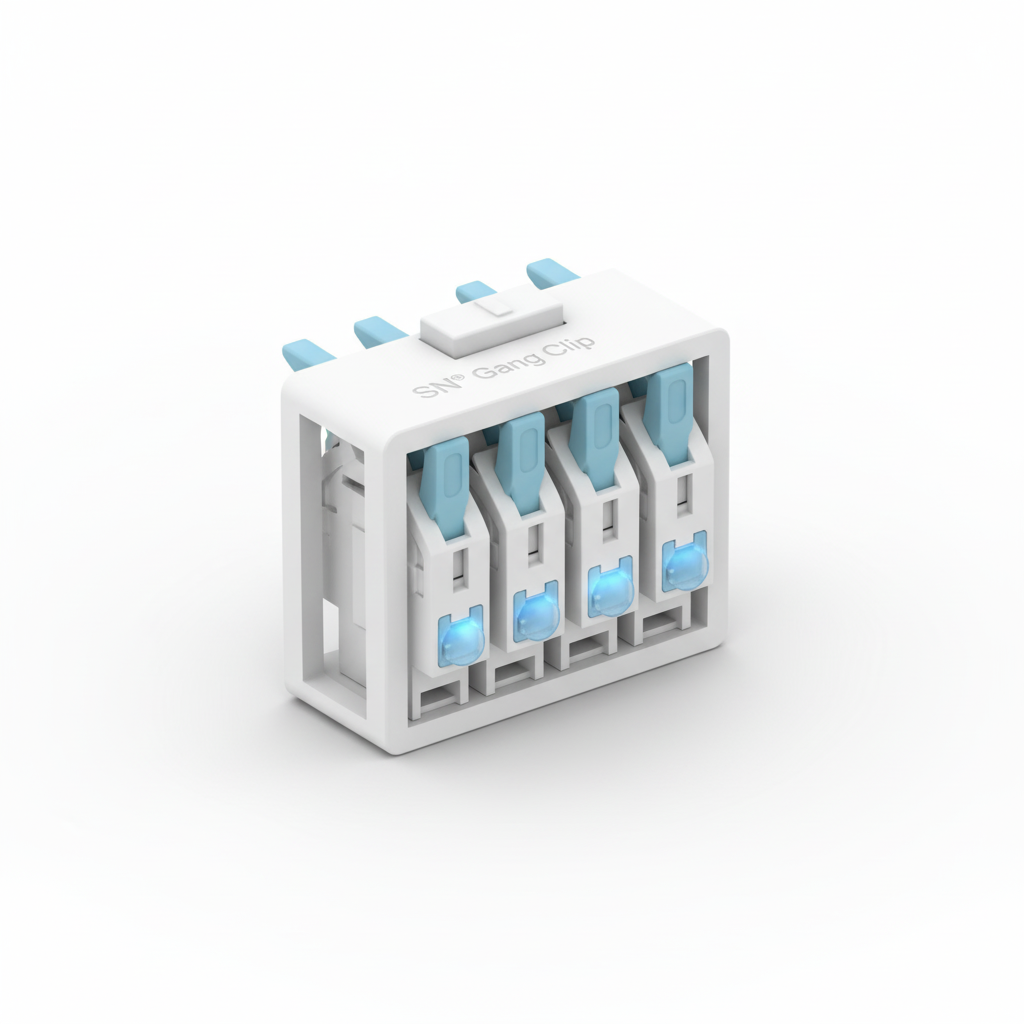

SN® Gang Clip for Adapters
The SN® Gang Clip securely holds four SN® connectors side by side, allowing simultaneous connection to shuttered adapters or multi-channel panels. This smart design speeds up installation, combining four duplex connectors into one Base-8 interface for high-density fiber systems.
- Enables four SN® connectors to connect at once
- Quick installation for high-density patch panels
- Individual connectors can be removed independently
- Compact and durable clip design
- Fits shuttered 4-channel SN® adapters

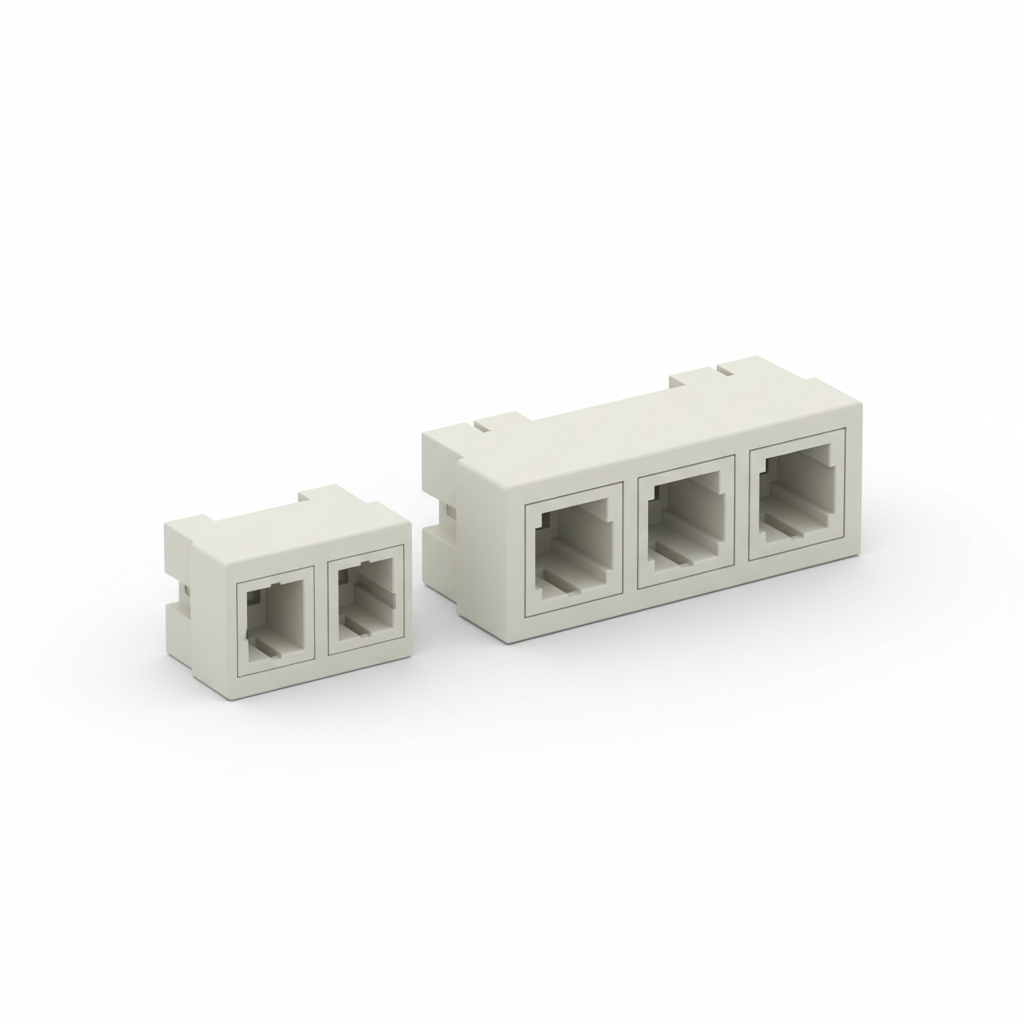

SN® Non-Shuttered Adapter – SC Footprint
The SN® SC-Footprint Non-Shuttered Adapter is available in 2-channel (4 fibers) and 4-channel (8 fibers) versions. Designed to fit legacy SC simplex and duplex hardware, it allows easy system upgrades to SN® hyper-density without redesigning panels or enclosures.
- Fits SC simplex (LC duplex) and duplex (LC quad) cutouts
- Telcordia, ANSI, TIA, and IEC compliant
- Mates with SN® standard and junior connectors
- Operating temperature: -40°C to +75°C
- Typical insertion loss: 0.10 dB (max 0.20 dB)
- 200 mating durability (GR-326-Core standard)

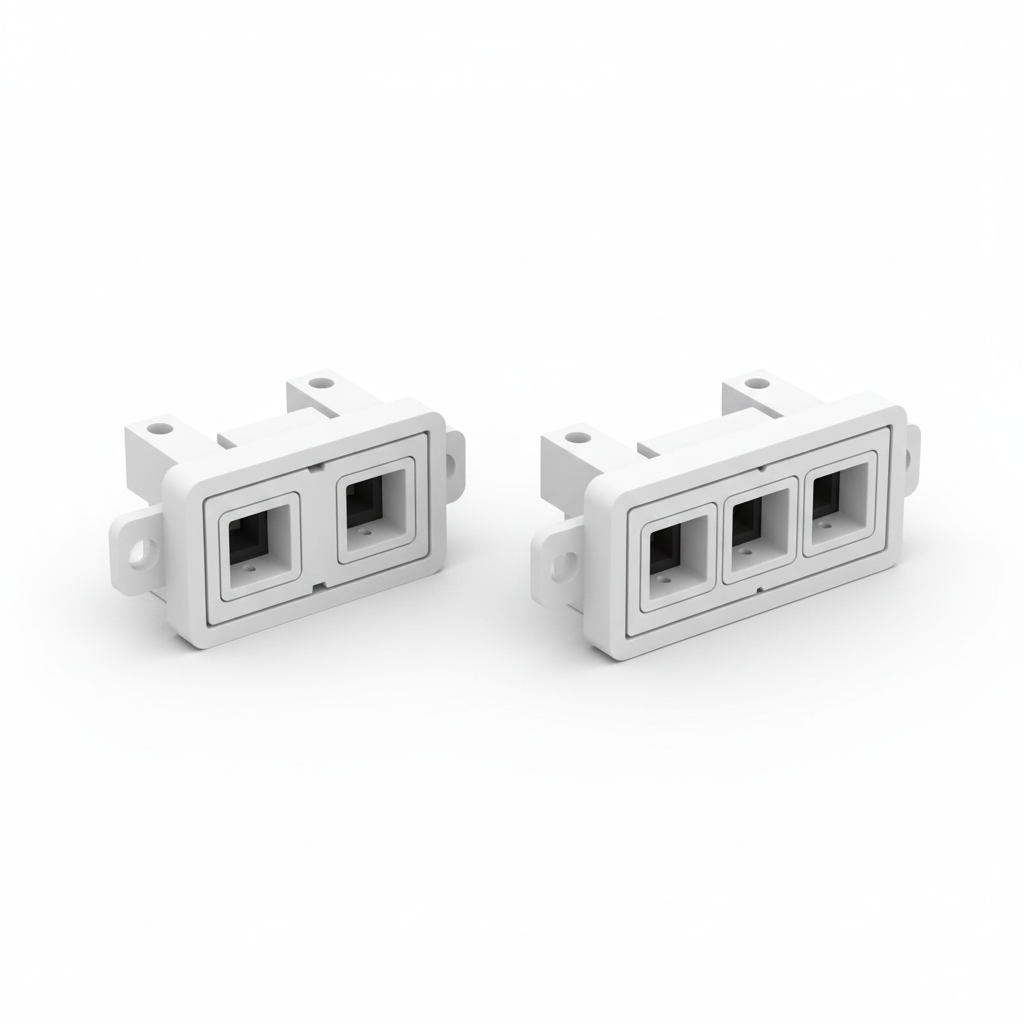

SN® Shuttered Adapter – SC Footprint
The SN® SC-Footprint Shuttered Adapter is available in 2-channel (4 fibers) and 4-channel (8 fibers) versions. Designed for legacy SC simplex and duplex hardware, it enables seamless upgrades to SN® hyper-density without requiring new panels or enclosures.
- Compatible with SC simplex (LC duplex) and duplex (LC quad) cutouts
- Built-in shutter for dust and laser protection
- Premium one-piece body with zirconia alignment sleeves
- Fully compliant with Telcordia, ANSI, TIA, and IEC standards

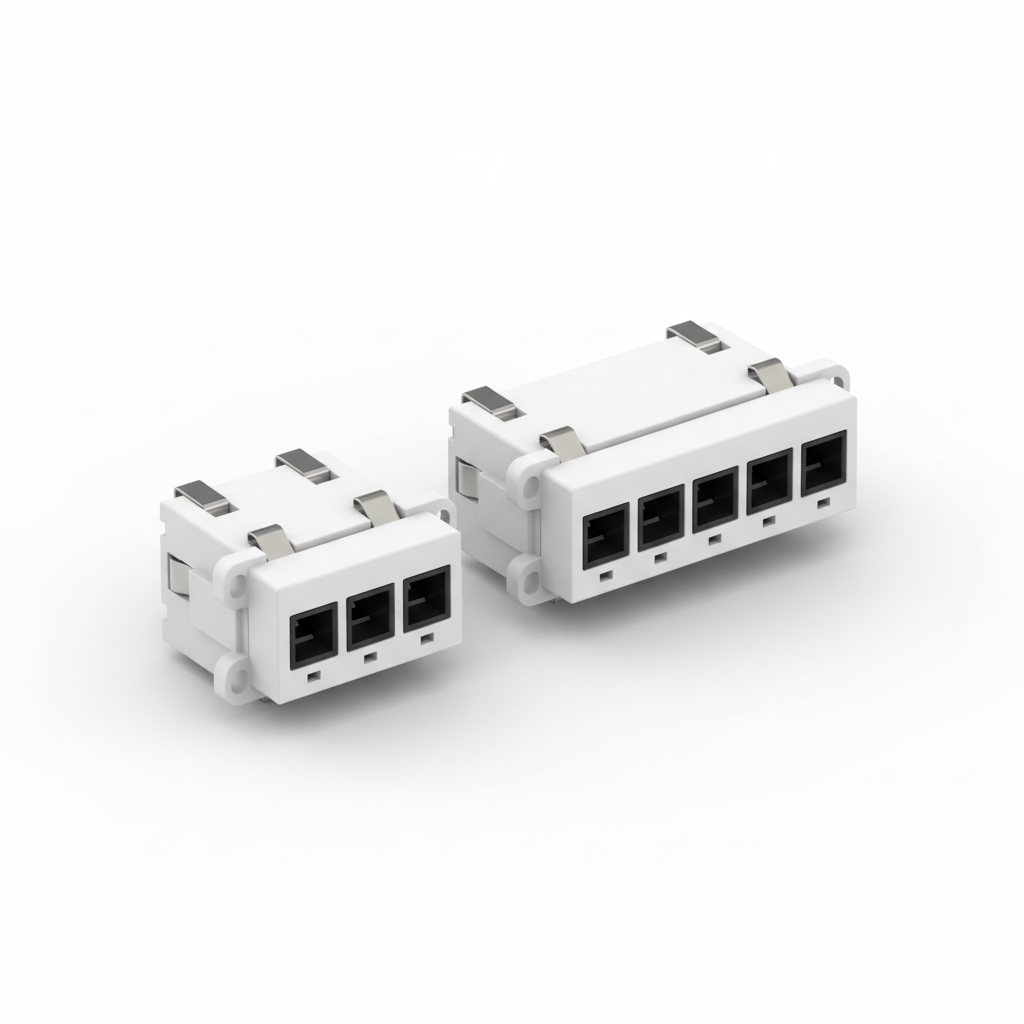

SN® Compact Adapter – SC Footprint
The SN® Compact Adapter is available in 3-channel (6 fibers) and 6-channel (12 fibers) versions. Designed to fit legacy SC simplex and duplex hardware, it’s ideal for low-profile modular cassette systems with limited space. The adapter is secured by cassette covers, featuring spring clips on the top and bottom for stability.
- Compatible with SN® Compact Connectors only
- Precision zirconia alignment sleeves
- Complies with Telcordia, ANSI, TIA, and IEC standards

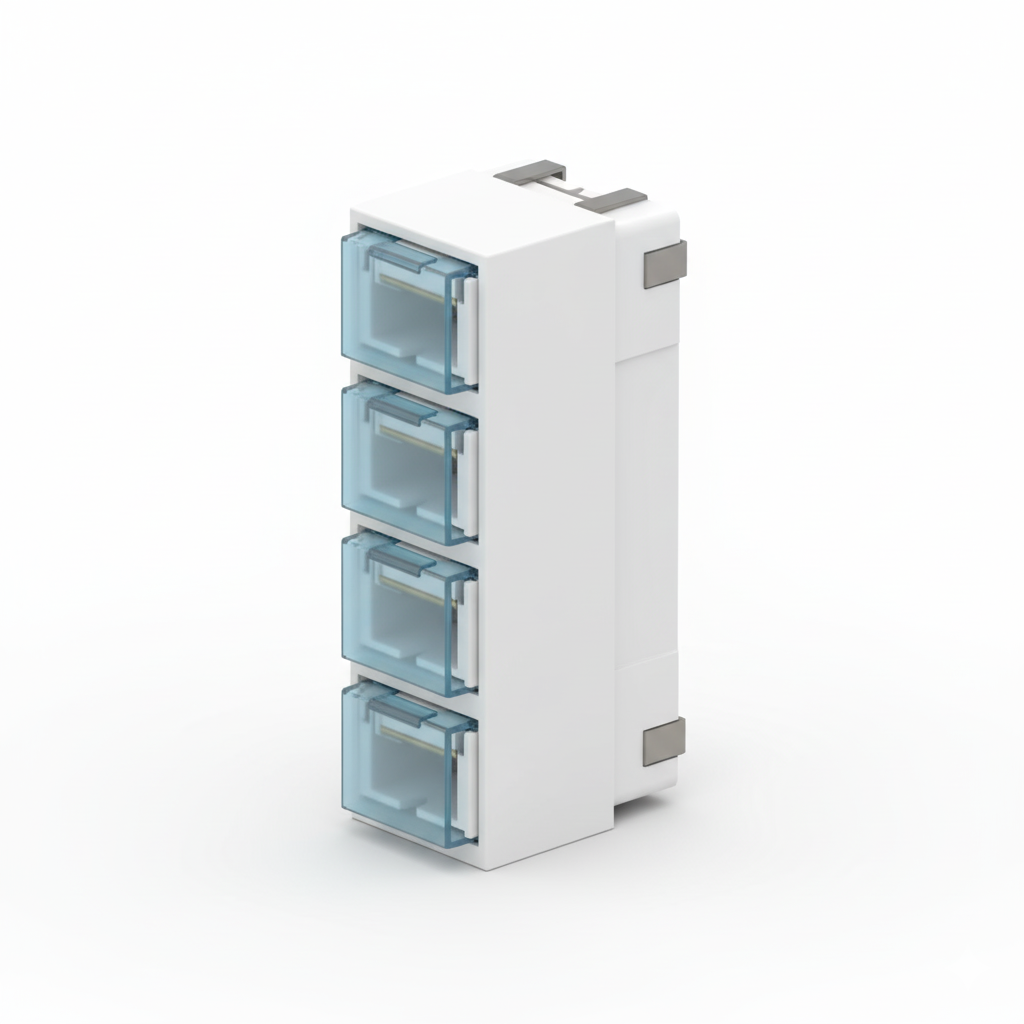

SN® Mini Shuttered Adapter
The SN® Mini Shuttered Adapter features a 4-channel design for ultra-high density at the patch panel front while saving up to 14.1 mm of space behind the wall. Ideal for compact optoelectronic systems, it ensures reliable, dust-protected connections in tight enclosures.
- For use with SN® Mini Connectors only
- Saves maximum behind-the-wall (BTW) space
- Compatible with SN® Uniboot and Gang-clip systems
- Precision zirconia alignment sleeves
- Compliant with Telcordia, ANSI, TIA, and IEC standards
- Typical insertion loss: 0.10 dB (max 0.20 dB)
- Operating temperature: -40°C to +75°C
